A new hybrid AIO CPU cooling concept is targeting one of the most overlooked thermal issues in modern liquid-cooled PC builds: the loss of airflow around the CPU socket.
Known as the Hybrid Socket-Flow AIO CPU Block, the concept combines a conventional all-in-one liquid CPU cooler with a small integrated fan built into the water block.
Unlike standard AIO designs that focus almost entirely on moving CPU heat to a radiator, this approach is designed to push directed airflow across the motherboard’s voltage regulator modules, memory-side socket area, upper M.2 zone and nearby components.
Liquid CPU Cooling
Uses a conventional AIO cold plate, pump, coolant loop and radiator to remove heat from the processor.
Directed Socket Airflow
A small block-mounted fan pushes air through ducted outlets toward VRMs, memory and the motherboard socket zone.
240 mm and 360 mm Options
The design could scale across mainstream dual-fan radiators and higher-performance triple-fan radiator models.
The idea is not to replace traditional liquid cooling. It is to improve what happens around it.
AIO liquid coolers are effective at removing heat from the CPU itself, but they often remove the local airflow that a tower air cooler naturally provides around the socket. That airflow can matter, particularly in compact systems, high-power gaming PCs, workstations and builds where the radiator is mounted away from the motherboard.
The Hybrid Socket-Flow AIO CPU Block is built around a simple engineering question: can an AIO water block cool the CPU while also restoring directed airflow to the surrounding motherboard components?
The Cooling Problem Standard AIOs Can Miss
All-in-one liquid coolers have become a preferred option for many PC builders because they move CPU heat away from the motherboard and into a radiator. This gives builders more room around the CPU socket, creates a cleaner internal layout, and can deliver strong thermal performance under load.
The normal AIO cooling path is straightforward:
CPU heat spreader
↓
Thermal paste
↓
Copper cold plate
↓
Microfins
↓
Coolant
↓
Radiator
↓
Radiator fans
↓
Room air
That works well for the CPU package. The problem is what happens around the CPU.
Motherboard VRMs, chokes, capacitors, memory slots and upper M.2 heatsinks sit close to the socket. These parts rely on airflow from case fans, radiator fans or the CPU cooler itself. A traditional tower cooler naturally pushes air through this area. Even if the air is not aimed directly at the VRM heatsinks, it still helps move heat away from the motherboard.
A standard AIO changes that airflow pattern. The radiator fans are usually moved to the front, top or side of the case. The pump block sits on the CPU, but it typically does not move much air around the board.
The result: the CPU may look cool in monitoring software while the surrounding motherboard area becomes warmer than expected. In a large case with strong airflow, that may not be a major problem. In a compact build, quiet system, front-mounted radiator setup or high-power workstation, it can matter.
What the Hybrid Socket-Flow AIO CPU Block Does Differently
The Hybrid Socket-Flow AIO CPU Block uses two separate cooling systems inside one outer housing.
The first is a conventional liquid-cooling system for the CPU. Coolant moves through the pump chamber, passes over the copper microfin cold plate, then returns to the radiator for heat dissipation.
The second is a dedicated airflow system for the motherboard socket area. A small fan mounted on top of the water block pulls air from above the CPU block and pushes it into a shaped internal chamber. From there, the air is directed out through low-mounted vents aimed toward the VRMs, RAM-side socket area, rear I/O-side components and upper M.2 region.
Both systems would share the same outer housing, but they should remain mechanically separate. The fan chamber must not interfere with the pump chamber. The airflow must be ducted around the outside of the pump housing and downward toward the motherboard, rather than into the pump itself.
The design principle is simple: the liquid side needs to remain sealed, reliable and pressure-tested. The airflow side needs to be serviceable, cleanable and quiet. A user should be able to clean or replace the fan without disturbing the coolant loop.
240 mm and 360 mm Radiator Possibilities
The concept could be developed in both 240 mm and 360 mm AIO configurations.
A 240 mm version would be aimed at mainstream gaming PCs, compact ATX systems and mid-tower builds where case compatibility matters. With a dual 120 mm radiator, it would be easier to fit into a wider range of cases while still giving users the benefit of the Hybrid Socket-Flow block. This version would suit mid-range and upper-mid-range CPUs, gaming systems and users who want a clean AIO layout without giving up socket-area airflow.
A 360 mm version would target higher-performance systems, including enthusiast gaming PCs, overclocked systems, creator workstations and CPUs running sustained heavy workloads. With a triple 120 mm radiator, it would offer greater heat dissipation capacity while still using the same socket-airflow water block to cool the VRM and motherboard zone.
| Model Type |
Radiator Size |
Target Use |
Main Benefit |
| 240 mm AIO |
Dual 120 mm radiator |
Gaming PCs, compact builds, mainstream desktops |
Easier case fitment with added socket airflow |
| 360 mm AIO |
Triple 120 mm radiator |
High-performance gaming, workstations, sustained workloads |
Larger radiator capacity with directed VRM cooling |
Both versions could use the same core water block architecture. The difference would be the radiator capacity, fan count and intended system class.
The 240 mm version would be the practical mainstream option. The 360 mm version would be the premium high-performance option.

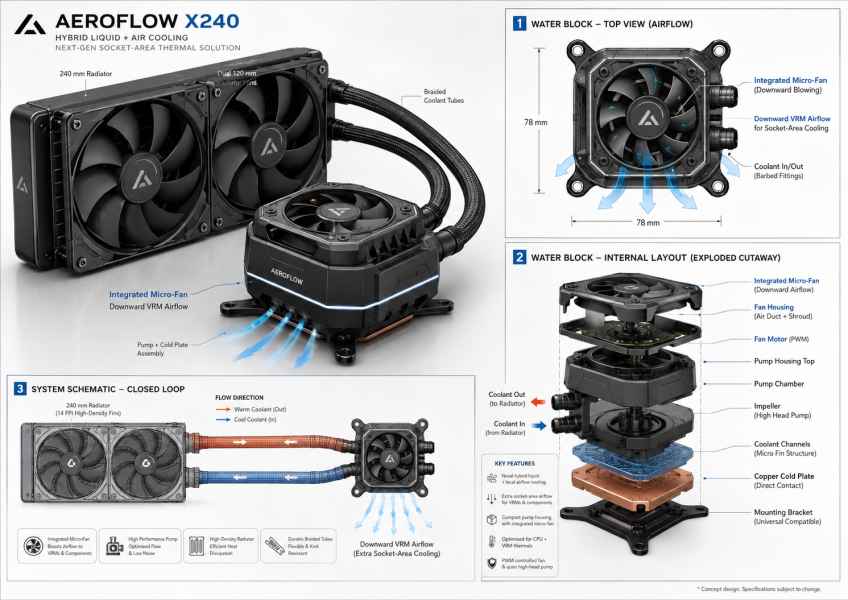

How the Water Block Would Be Built
The block would use a layered structure, with the socket fan and air ducting positioned above the pump and cold plate assembly.
A simplified internal stack would look like this:
Top decorative grille / dust guard
↓
40–60 mm slim axial fan
↓
Air guide / radial duct chamber
↓
Electronics PCB / fan and pump controller
↓
Pump motor housing
↓
Pump impeller chamber
↓
Coolant inlet and outlet ports
↓
Jet plate or flow spreader
↓
Microfin copper cold plate
↓
Thermal paste
↓
CPU heat spreader
The most important rule is that the fan must cool the motherboard area, not the pump chamber.
If the fan simply blows into a closed pump housing, it will do very little. The airflow needs a proper path. It should be guided around the outside of the pump body and forced out through shaped vents near the lower edge of the block.
That gives the air a useful job: moving heat away from VRM heatsinks and nearby socket-area components.
Directed Socket Airflow, Not Random Air Movement
The strongest part of the concept is not the fan itself. It is the ducting.
A small fan placed on top of an AIO block could easily become a gimmick if the airflow is not controlled. It could create noise, stir warm air and move dust without producing meaningful thermal gains.
The Hybrid Socket-Flow design instead uses a controlled airflow path.
The fan draws air from above the block and pushes it downward into an air plenum. A central deflector spreads that air outward. The air then exits through multiple low-mounted ducts aimed at the surrounding motherboard zones.
A simplified airflow layout would look like this:
Rear I/O VRMs
↑
│
┌───────┴───────┐
RAM ←│ CPU BLOCK │→ VRM side
└───────┬───────┘
│
↓
M.2 / GPU side
The outlets should be positioned low on the block, not just around the decorative top panel. Low side vents can push air across the motherboard surface, where VRM heatsinks, capacitors and nearby components actually sit.
A side-view concept would look like this:
Fan intake
↓
┌─────────────┐
│ top fan │
├─────────────┤
│ air plenum │
├─→ → → → → →─┤ side exhaust slots
│ pump body │
├─────────────┤
│ cold plate │
└─────────────┘
The aim is not to create airflow for visual effect. The aim is to create directed airflow that cools components a standard AIO can leave behind.
Fan Size and Design
For an early prototype, a 50 mm or 60 mm slim PWM fan would likely offer the best balance between airflow, noise and block size.
A 40 mm fan would be easier to fit, but it may need higher RPM to move enough air. That can create a sharper, more annoying noise profile. A 70 mm fan could move more air at lower speeds, but it would make the block larger and may create compatibility issues with RAM, VRM heatsinks or compact cases.
Recommended Fan Profile
- 12V PWM control
- Slim 10–15 mm thickness
- Hydrodynamic, magnetic or dual-ball bearing
- Approximate 800–3,000 RPM operating range
- Rubber or silicone vibration isolation
- Removable dust grille
- Low-noise fan curve
Airflow Direction
The fan should blow downward into the duct chamber, not upward away from the board. Once inside the air chamber, the flow should be split outward in four directions: VRM, RAM, SSD and rear I/O side.
[Top Fan]
↓
┌─────────────────┐
│ Air plenum zone │
└───↓───↓───↓───↓─┘
VRM RAM SSD IO
Liquid Cooling Path Inside the Block
The liquid side of the Hybrid Socket-Flow AIO CPU Block does not need to reinvent AIO cooling. In fact, it should avoid unnecessary complexity.
A reliable liquid path would look like this:
Coolant from radiator
↓
Inlet barb
↓
Pump impeller chamber
↓
Jet plate / flow spreader
↓
Copper microfin cold plate
↓
Outlet chamber
↓
Tube back to radiator
Inside the block, the layout would be:
[Coolant In]
↓
[Pump Impeller]
↓ pressurised coolant
[Jet Plate]
↓
[Microfin Cold Plate]
↓
[Outlet Manifold]
↓
[Coolant Out]
The cold plate should be copper or nickel-plated copper. A microfin field over the CPU hotspot would increase the surface area exposed to the coolant and improve heat transfer. A slightly convex contact surface may help maintain even mounting pressure across the CPU heat spreader.
For a high-end version, a fin pitch around 0.15–0.30 mm may be possible if manufactured with suitable CNC or skiving equipment. For an early prototype, however, it would be better to avoid manufacturing the liquid side from scratch unless the builder has proper tooling and sealing experience.
Prototype Path: Start With an Existing AIO
The most practical development route is to begin with an existing 240 mm, 280 mm or 360 mm AIO and build a custom socket-fan cap for the pump block.
That path avoids the hardest and riskiest part of the project: designing a sealed liquid cooler from nothing.
Existing 240 / 280 / 360 mm AIO
+
Custom 3D-printed or CNC pump cap
+
50 / 60 mm PWM fan
+
Directional air duct outlets
+
Thermal testing
This version would not require opening the sealed liquid loop. It would simply test whether a fan-and-duct module mounted above the pump block can reduce VRM and socket-area temperatures.
- existing AIO pump/block
- custom pump-top shroud
- slim PWM fan
- four ducted air outlet paths
- rubber fan isolation
- removable top grille
- motherboard fan header control
- thermal camera or temperature probes
- fan-off versus fan-on testing
If the prototype produces a measurable VRM temperature reduction without excessive noise or clearance problems, then a fully integrated version would be worth exploring.
Electrical Control
A strong implementation should expose separate control for pump speed, radiator fan speed and block micro-fan speed.
Basic Setup
CPU_FAN header → radiator fans
AIO_PUMP header → pump power/control
SYS_FAN header → block micro-fan
Advanced Setup
SATA power → pump and fans
PWM 1 → radiator fans
PWM 2 → pump
PWM 3 → block fan
USB 2.0 → software control
The block fan should not simply follow CPU temperature. Its job is to cool the socket area, so the best control source would be VRM temperature or motherboard MOS temperature.
If those readings are not available, the fan could follow CPU package temperature, coolant temperature or motherboard temperature as a fallback.
| Temperature |
Block Fan Speed |
| Below 45°C |
0–30% |
| 45–60°C |
40% |
| 60–75°C |
60% |
| 75–85°C |
80% |
| Above 85°C |
100% |
A premium version could offer zero-RPM idle mode, separate VRM fan control and software-based thermal tuning.
Expected Cooling Benefits
The Hybrid Socket-Flow AIO CPU Block should not be marketed as a miracle CPU cooler.
The CPU is still cooled primarily by the liquid loop. A small fan on the block is unlikely to produce a dramatic drop in CPU core temperatures on its own.
The realistic benefit is around the motherboard socket area.
| Area |
Expected Result |
| CPU core temperature |
0–3°C improvement, possibly no change |
| VRM temperature |
5–20°C improvement possible |
| RAM / M.2 / socket area |
2–10°C improvement possible |
| Sustained system stability |
Possible improvement under heavy load |
| Noise |
Could increase if fan selection is poor |
| Dust |
Likely to increase around socket area |
Main performance claim: the Hybrid Socket-Flow AIO CPU Block is designed to improve socket-area and VRM cooling while retaining conventional AIO CPU cooling performance.
Where a 240 mm Version Would Make Sense
A 240 mm version would likely be the best mainstream option.
It would suit mid-tower gaming PCs, compact ATX builds, mainstream gaming CPUs, upper-mid-range productivity systems, users who want broad case compatibility, and builds where a 360 mm radiator will not fit.
The benefit of the 240 mm version would be practicality. It would fit more cases, cost less to manufacture, and still offer the main design advantage: directed airflow from the CPU block to the socket area.
For many users, this would be the better-balanced product.
Where a 360 mm Version Would Make Sense
A 360 mm version would target higher-performance systems.
It would suit enthusiast gaming PCs, creator workstations, high-core-count CPUs, overclocked or power-unlocked processors, systems running long rendering or compiling workloads, and users who want maximum radiator capacity.
The 360 mm model would pair greater radiator surface area with the same socket-flow block design. That would make it the stronger option for users who want both CPU thermal headroom and better motherboard-area cooling.
The 360 mm version would also be the more premium-looking design, particularly if paired with ARGB radiator fans and a clean pump-block lighting system.
ARGB Design Considerations
ARGB lighting could be included in both 240 mm and 360 mm versions, but it should not be the main selling point.
The technical value is the hybrid airflow system. Lighting should support the design, not distract from it.
- subtle ring lighting around the pump block
- ARGB radiator fans
- optional lighting around the top grille
- software control through standard motherboard headers
- low-brightness professional mode
- full off mode for workstation builds
The product should look modern, but the visual design should communicate performance and engineering rather than just gaming decoration.
Engineering Challenges
Noise
Small fans can become irritating if they spin too fast or sit behind restrictive grilles. A 50 mm or 60 mm fan running at lower RPM would be more usable.
Dust
A downward-facing socket fan will move dust into the CPU socket area. The fan module should be easy to remove and clean.
Clearance
A taller pump block may interfere with RAM, VRM heatsinks, tubing, case side panels or GPU backplates.
Airflow Direction
Poorly placed outlets could simply stir hot air around the block. The ducts need to aim airflow toward the right components.
Liquid Reliability
If the design becomes a fully custom block, the pump chamber, cold plate, gasket and fittings must be pressure-tested.
Serviceability
The fan section should be removable without disturbing the sealed liquid loop or CPU mounting pressure.
How the Design Could Stand Out
Because some AIOs already include socket or VRM fans, the Hybrid Socket-Flow AIO CPU Block needs a clear design advantage.
The strongest version would focus on directed and modular airflow.
- replaceable duct inserts for different motherboard layouts
- AM5-specific VRM duct
- Intel LGA1700/LGA1851 duct
- RAM-side duct option
- M.2-side duct option
- compact ITX airflow module
- removable magnetic fan cartridge
- zero-RPM idle mode
- VRM-temperature-based fan curve
- coolant temperature monitoring
- tool-free fan cleaning
- low-mounted airflow outlets
That would make the design more than an AIO with a fan. It would become a configurable socket-area thermal management system.
Testing the Prototype
To prove the concept, testing should compare the same AIO with the block fan disabled and enabled.
Measurements to Record
- CPU package temperature
- CPU clock speed
- CPU package power
- VRM temperature
- motherboard temperature
- RAM temperature where available
- nearby M.2 temperature
- coolant temperature
- radiator fan RPM
- pump RPM
- socket fan RPM
- ambient room temperature
- system noise level
Test Conditions
- idle testing
- CPU-only load
- CPU-plus-GPU combined load
- gaming workload
- low-airflow case condition
- front-mounted radiator setup
- top-mounted radiator setup
- fan-off versus fan-on comparison
The prototype would be worth developing further if it can lower VRM temperatures by around 8–15°C without increasing CPU temperature, creating annoying noise or causing clearance issues.
Why This Concept Matters
PC cooling is often judged by CPU temperature alone. That is useful, but incomplete.
Modern systems are dense thermal environments. The CPU, GPU, VRMs, memory, SSDs and chipset all contribute heat. An AIO may cool the CPU effectively while still leaving the motherboard socket area under-ventilated.
The Hybrid Socket-Flow AIO CPU Block treats the socket as a thermal zone, not just a mounting point for a cold plate.
That makes the concept relevant for real-world builds where airflow is not perfect, cases are more compact, radiator placement varies and users increasingly want powerful systems that are also quiet and visually clean.
Final Thoughts
The Hybrid Socket-Flow AIO CPU Block is a practical concept built around a real design issue in modern liquid-cooled PCs. Standard AIO coolers can perform well on the CPU while reducing the local airflow that traditional tower coolers naturally provide to VRMs and nearby motherboard components.
By adding a small, ducted fan to the water block, the concept aims to restore that missing airflow. The CPU remains cooled by the liquid loop, while the motherboard socket area receives directed airflow through low-mounted vents.
The design could be developed in both 240 mm and 360 mm AIO versions. The 240 mm model would suit mainstream gaming and compact builds, while the 360 mm model would target higher-performance desktops, creator systems and sustained CPU workloads.
The idea should not be oversold as a guaranteed breakthrough in CPU temperatures. Its real value is more specific: better socket-area thermal management, improved VRM cooling potential and a more complete approach to cooling the components surrounding the CPU.
If a prototype can prove measurable VRM temperature reductions without unacceptable noise, dust or clearance problems, the Hybrid Socket-Flow AIO CPU Block could become a useful evolution of the modern AIO cooler.
